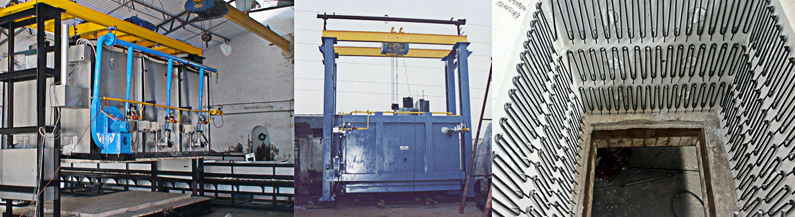

Bell Furnaces give you flexible, efficient performance in a variety of heat-treating applications. The fast heating rate, heavy load capacity, and reliable operation help you achieve fast turnaround and high productivity. The furnace is very simple and economical to operate, and is available in a wide range of sizes.

Thermochem Furnaces Pvt. Ltd

The applications range up to 1250°C, with endothermic, exothermic, or nitrogen atmospheres. This furnace enables you to handle various heat treatment applications efficiently and economically. This Furnace is differ from shuttle kiln type furnace . Bell is Vertical lifting and lowering type with good sealing.Lifting and Lowering is by electro mechanical system with Gear motor and counter balance system..

Material is loaded on car hearth. Material Charging and discharging by manually systems . Furnace Temperature control automatically by Temperature Programmer , PID Temperature Controller.

Car Bell Type Furnace is suitable in operation , loading , unloading and proper sealing and energy efficient compare to shuttle kiln furnace.

  • Low watt-density elements for long life
  • Easy-loading chamber
  • Complete, pre-wired free standing control panel with disconnect switch
  • SCR power control
  • Ceramic fiber block insulation reduces power consumption and boosts your productivity and efficiency with faster thermal cycling and reduced heat loss
  • Guide posts to ensure proper alignment of heating bell on base
  • Carbon control with oxygen probe
  • Motorized gantry heating bell lift and roll away mechanism
  • Exothermic gas flowmeters
  • Nitrogen-methanol atmosphere system
  • Standby base for preheating and setting heating bell when not in use
  • Top mounted recirculating fan
